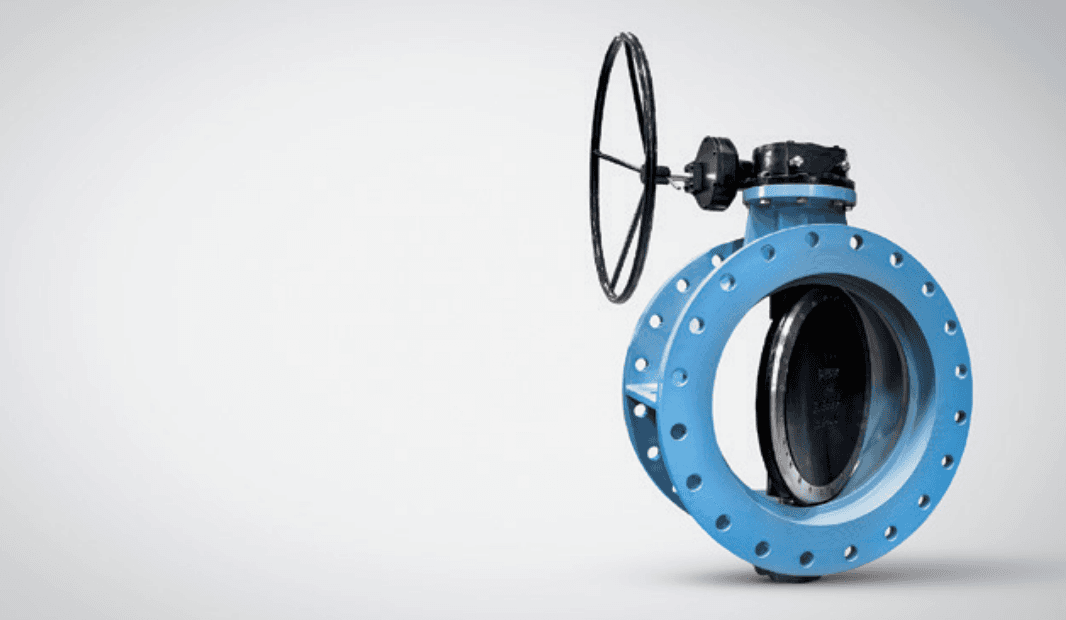

Double Eccentric Double Flanged Butterfly Valve
Double eccentric butterfly valve with soft seat encapsulated in the disc. WRAS certified for drinking water — ideal for water treatment plants, desalination, cooling water systems, and wastewater applications.
Available Connection Types
Double brida serie 14
Double brida serie 15
Double brida serie 14
Double flanged series 15
Quick Specifications
Types:Double Flanged
Diameters:DN50 (2") to DN600 (24")
Temperature:Standard operating range
Pressure:PN10, PN16, PN25, Class 150 lbs
Technical Specifications
Materials
Body: Ductile iron GJS400-15, stainless steel
Disc: With encapsulated elastomer EPDM or NBR
Shaft: Stainless steel
Seat: Soft seat retained in disc
Please review the full list of materials for each valve component at Material Coding
Characteristics
WRAS certificate for drinking water
Soft seat encapsulated design
Excellent sealing performance
100% tightness in preferential direction of flow
Two piece shaft
Low pressure drop
Face to face: Series 14 series 14
Applications
Drinking water
Water treatment plants
Desalination plants
Cooling water systems (power plants, general industry)
Waste water effluent and treatment plants
