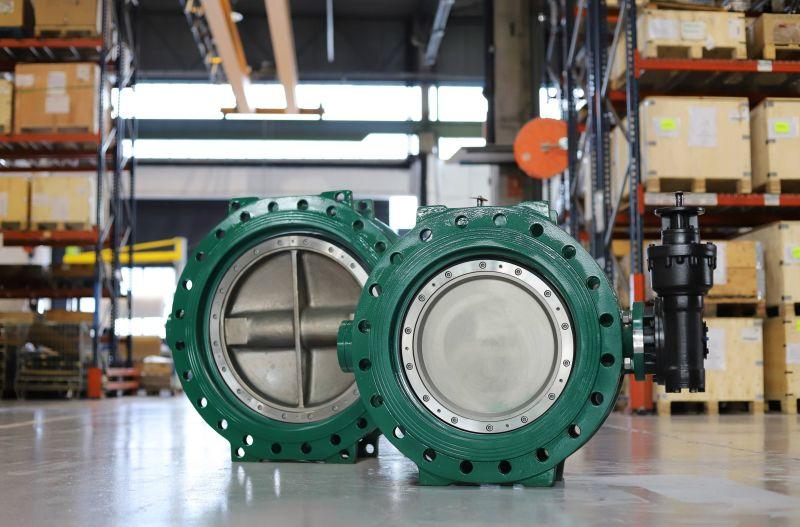

Double Flanged Connection
Dual flange design for secure installation
Technical Data
| Manufacturing Range | DN32 - DN2000 |
| Face to Face | EN 558 Series 13, ISO 5752 Series 13, API 609, EN 593 |
| Flange Mounting | PN10/16 - ANSI 150 lbs |
| Flanges | ISO 7005, DIN 2501, BS 4504, ANSI Class 150: ANSI B16.5 |
| Top Flange Connection | ISO 5211 |
| Testing | ISO 5208 zero leakage, API 598 |
| Coating | Rilsan® |
| Working Pressure | DN32-DN600: Max. 20 bar, >DN600: Max. 16 bar |
Double Flanged Connection
Characteristics
Certified and approved valves for different applications
Zero leakage
Vulcanized seat
One-piece shaft, complete protection of shaft and body against circulating fluids
Bidirectional flow
Self-cleaning
Lightweight design, easy installation
Easy maintenance
Operation possible with different controls (lever, gearbox, pneumatic, electric, hydraulic actuator...)
Low operating torque
Aerodynamic disc design that minimizes pressure loss
General Applications
Water Applications
Irrigation
Drinking water
Seawater
Water supply
Gasoline
Industrial water
Wastewater
Fire protection systems
Cooling towers
Industrial Applications
Food
Paper
Chemicals
Petrochemicals
Engineering
Cement
Oil
Metallurgical
